Wall Panels

We at Pro Acoustic Designs Inc. , offer complete solutions for your every noise control and management requirements.

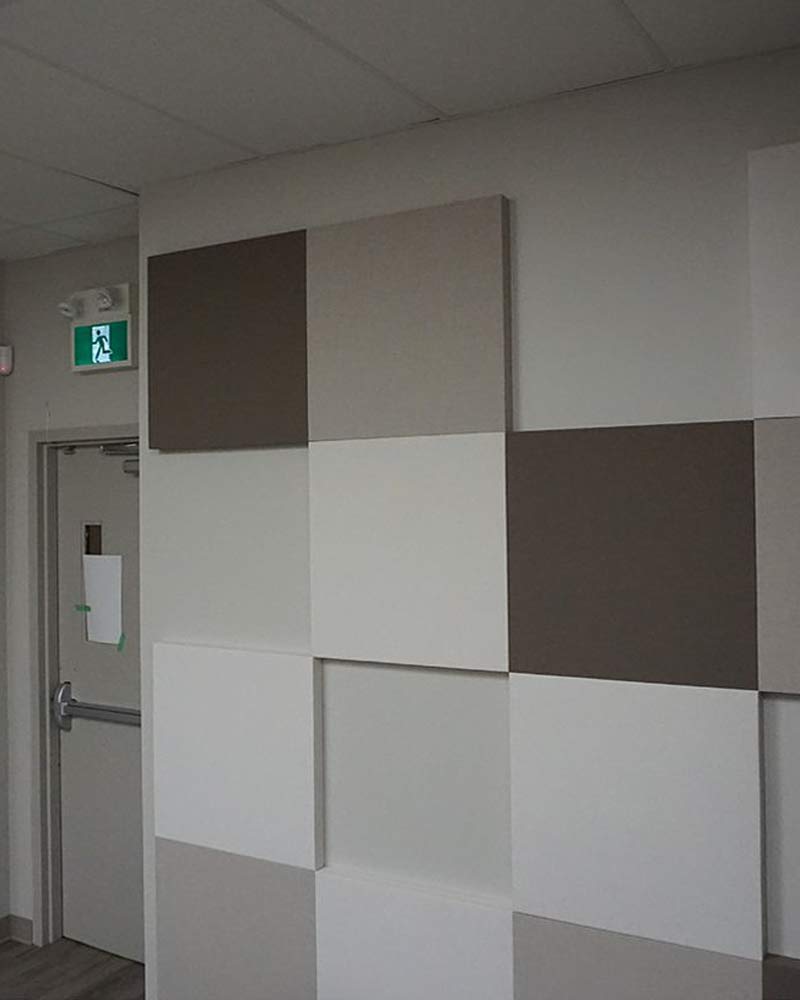

Acoustic Fabric Wrapped Wall Panels provide the perfect solution to address sound and echo absorption needs within interior spaces. By effectively softening sound and reducing speech reflections, these panels significantly enhance acoustical performance while simultaneously elevating the visual appeal and design of the surroundings. Made from a VOC Free Fiberglass, the acoustical fabric ensures convenient stain resistance, durability, and easy maintenance.

Fully Recyclable

Custom Finishes

Easy to Replace

Acoustic Performance

design Variety

Fabric Wrapped Wall Panels

Specifications

We at Pro Acoustic Designs Inc. , offer complete solutions for your every noise control and management requirements.

Thickness:

1 inch

2 inch

Custom

Sizes:

Custom Fabric Wall Panels (Up to 4’ x 10’)

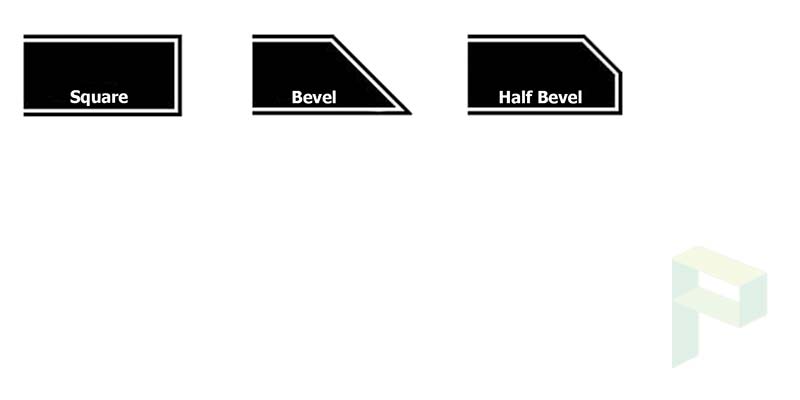

Edge Type:

Standard: Square

Custom: Bevel & Half-Bevel

Material:

Glass Fiber with Woven Fabric (6-7 lb. Density)

Acoustics:

1” = 0.85 NRC

2” = 1.05 NRC

Flammability:

Class A ASTM-E84

Class B CAN/ULC 2-102

Finish Options:

Variety of Fabrics

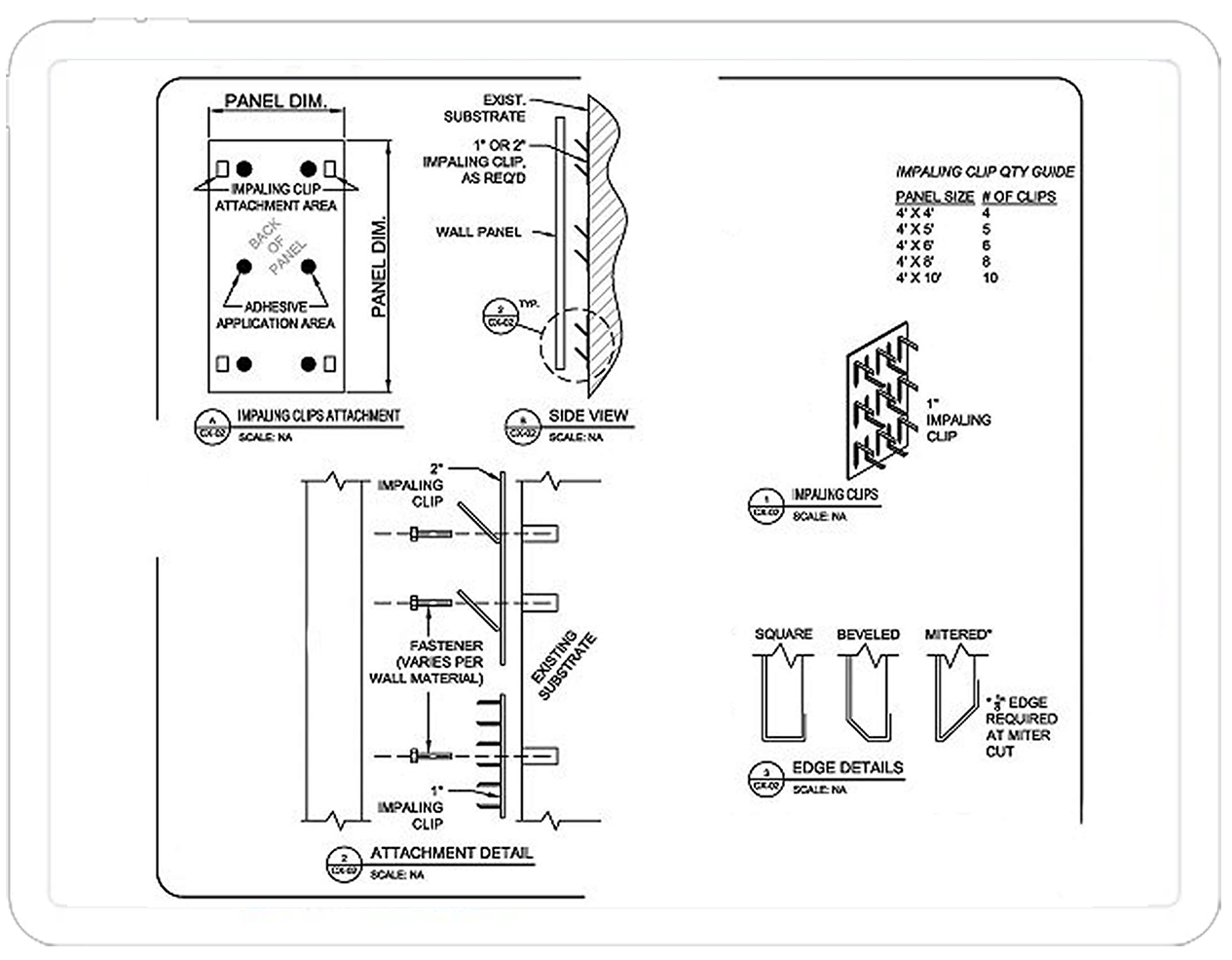

Installation:

Installation completed by Certified Installers

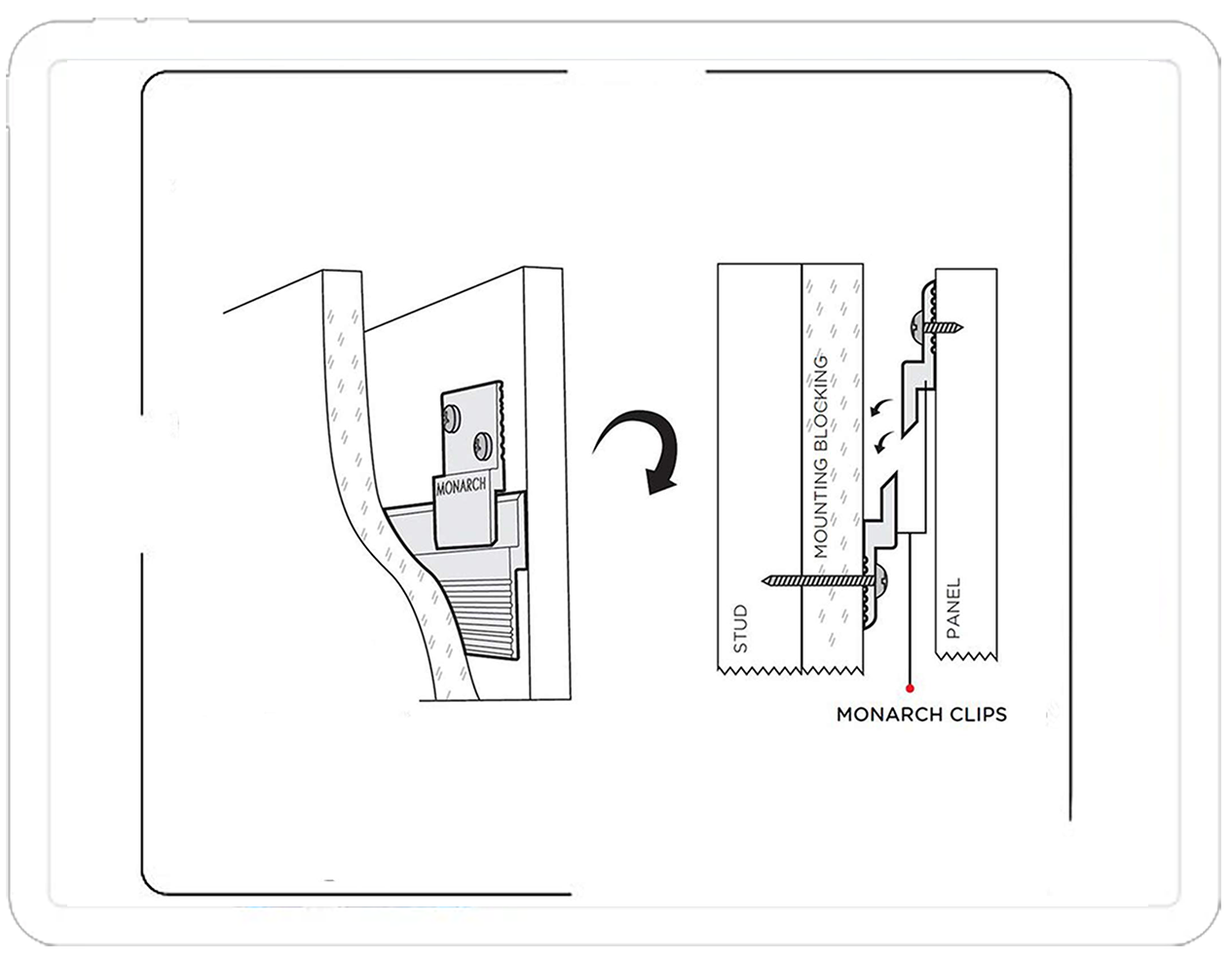

Adhesive, Mechanical Z-Clips, Impaling Clips

Fabric Manufacturers:

Guilford of Maine

Designtex

Maharam

Knoll

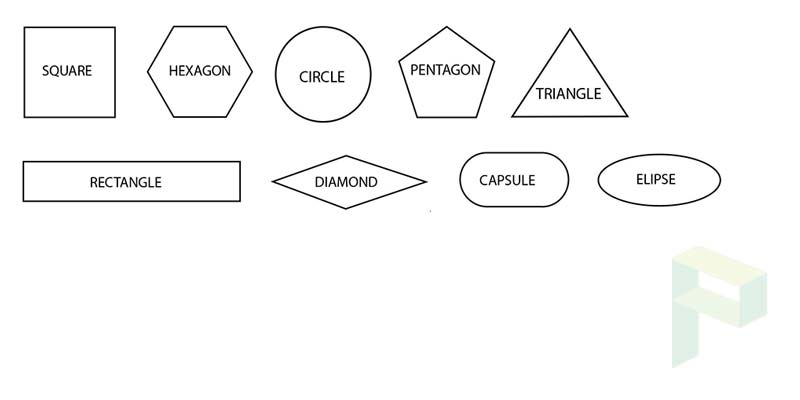

Wall and Ceiling Premade Edge Profiles Standard Shapes Resined Edges Metal Edges

Acoustical Panels

Description Acoustical Panels are general purpose panels, consisting of Panel Clip a medium density core with a fabric or vinyl finish. Panels are recommended for use where panels are unlikely to be subjected to abuse or impact. Panels are supplied complete with factory installed devices for different types of mounting such as mechanical, adhesive, magnetic or hook and loop fastenings. Panel All panels are custom fabricated and offered in a variety of sizes, geometric shapes, curves, thicknesses and finishes. Design Considerations When using speakers in ceiling or wall panels, it is recommended the speaker grille be visibly mounted at the face of the panel. Speaker function creates air movement and any fabric covering the speaker will experience premature soiling. Available in: (Any Size and Shape up to 4’ x 10° 1/2”, 1″, 11/2″, 2”

Standards, Tests and Approvals

		Surface Burning Characteristics (ASTM E-84) (CAN/ULC-S102-10)
All panel components have a Flame Spread rating of less than 25.
Note: Building code requirements may necessitate composite panel testing based on specified finish.
A panel comprised of “Class A” (Flame Spread of 25 or less) components does not necessarily produce a composite panel meeting the “Class A” requirement.
